NDE stainless-steel exterior door

NDE is a stainless-steel door for exterior use. The door is made from stainless material AISI 304, with brushed surface. The internal part is filled with polyurethane foam for reinforcement. The door is ready to be mounted into the exterior doorframe NZE. It is fastened on a swivel pin in the lower and upper part of the door. The door can additionally be arrested at the hinges, in which way the mounting inaccuracies can be limited. The door is further fastened in a way to eliminate the effect of the sun/shade transition and thus the different expansion of the stainless material at various temperatures.
As standard, the NZE doorframe is manufactured with the depth of 130 mm for mounting in the wall of at least 100 mm. The doorframe cannot be ordered separately (always as the NDE and NZE set).
The door types are delivered with widths of 700, 800 and 900 mm and in the left- and right-hand design. The door includes fittings and a cylinder with a key.

The door is not designed as fireproof!

Doors and doorframes can also be custom-made in other dimensions (e.g., 1000 mm). To order, it can be supplemented with opening with shatter-proof glass, safety fittings, ventilation, handle for the disabled, anti-panic handle, slot machine for conditional entry after payment of MAD, automatic closer, or other equipment by the customer’s wish.

Package contents

  • stainless steel door with hinges
  • cylinder with keys
  • lock
  • fittings (ball, handle)

opening with (shatter-proof) glass
ventilation
coin automat for paid entry MAD
safety fittings
handle
anti-panic handle
automatic closer
stainless-steel exterior doorframe NZE

External dimensions including the doorframe (width × height) - min. building opening 900/1000/1100 x 2055 mm
Passage dimensions (width x height) 710/810/910 x 1970 mm
Material stainless steel AISI 304, th. 1.0 mm – surface finish by brushing
Thickness 46 mm
Panel material polyurethane

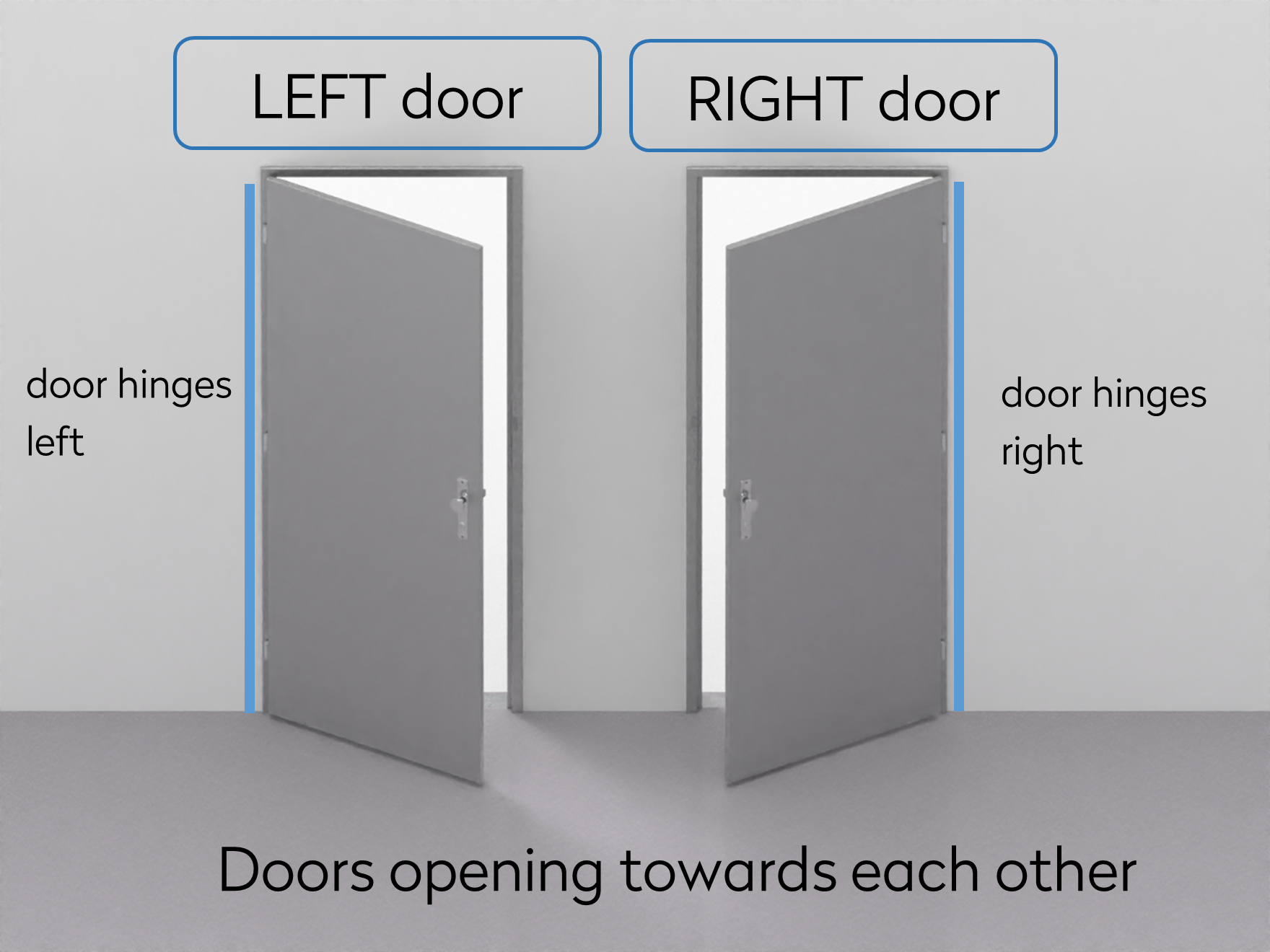

Design right- or left-hand

Scheme of stainless steel door NDE with doorframe NZE

Scheme of stainless steel door NDE with doorframe NZE
