AUZ 08 INV stainless-steel closet for the disabled, standing, back drain
AUZ 08 INV is a stainless-steel WC in matt design for the disabled. It is a stainless-steel toilet to stand on the floor at the wall. The drain is directed backwards (the bottom drain version AUZ 02 INV). The closet is based on the standard AUZ 08, which is heightened and lengthened to fulfil the directive regarding products for disabled persons. To increase the user comfort, the seating part is provided with a seat from hardened plastic. The closet includes a removable backrest recommended by the League for the rights of the wheelchair bound.
The standing WC is suitable for places where the common closet cannot be attached to the side wall, because of a thin bearing particle, for example.
It is suitable to supplement the closet with an automatic pressure-water flushing device with delayed flushing AUZ 3 INV (suitable for the disabled) or any flushing device with a cistern.
Further closet versions can be found in the section Stainless-steel closets or Stainless-steel safety closets.
Package contents
- Stainless steel closet
- Plastic seat
- Anchoring material
- Stainless-steel backrest
AUZ 3 INV – vandal resistant pressure flushing system for disabled
| Water inlet | d= 34 - 50 mm |
| Min. water flow | 70 l/min |
| Outlet | d= 90 mm |
| Weight | 27 kg |

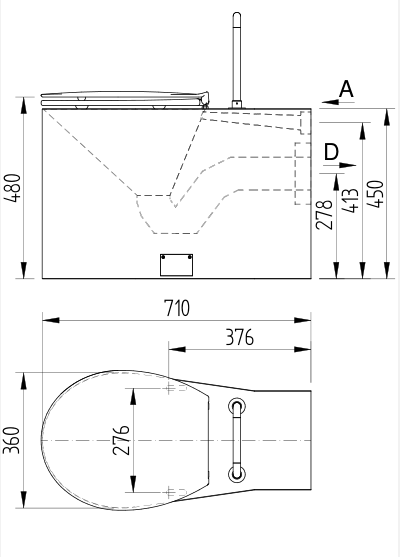

- Set-up outlet d = 110 mm including rubber sleeve for pipe d = 90 mm.
- Set-up water inlet d= 34-50 mm according to chosen sealing.
- A –
water inlet
- D –
outlet
