SPS 06 outdoor shower column cylindrical

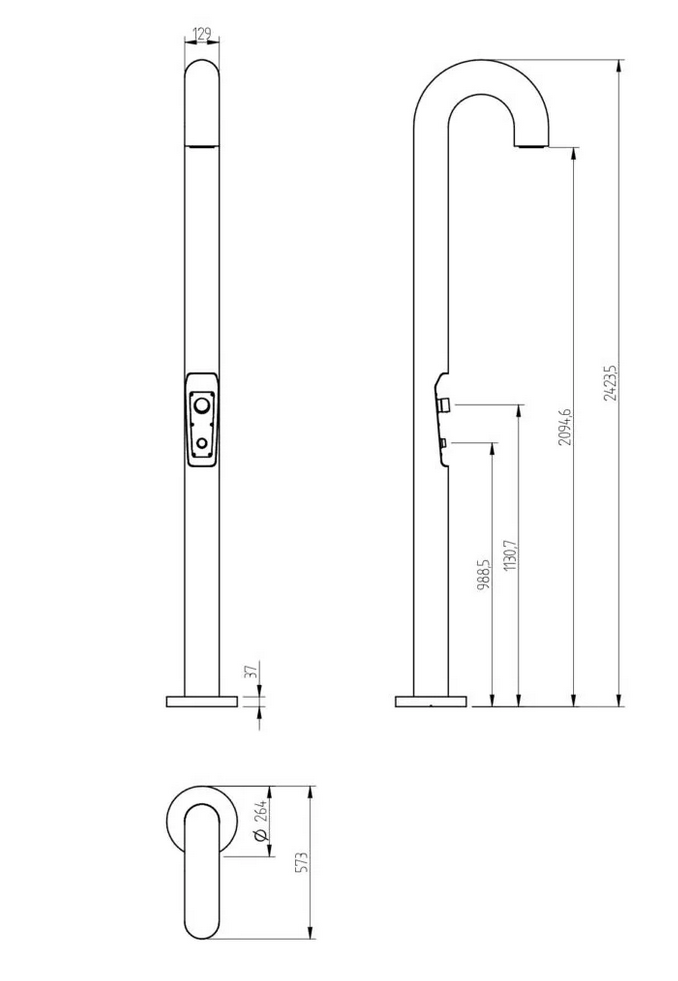

SPS 06 detailThe SPS 06 outdoor shower column is made of a single cylindrical piece with a diameter of 129 mm. The main element of the shower column, located at a height of 2.1 m is the integrated control panel, including the pressure valve for switching on the shower and also the mixing valve for water control in the shower head. The surface of the cylindrical column has a brushed finish. A convenient feature of the head is its adjustability allowing highly versatile use.
Overall, the SPS 06 shower column has a very compact look, which makes it suitable for use in public swimming pools, sports grounds and parks, as well as in the garden of a family home. The basic version is produced in a two-water design. Attachment is by way of chemical anchoring and an anchor flange which is protected by a cover.
The columns are made of stainless steel grade ČSN 17240 (AISI 304). Other material (e.g. AISI 316) can be used on request. For the treatment of stainless steel products, we recommend using Würth – Preservation (Art. No. 0893 121 K), Cleaner (Art. No. 893 121 1).
For the treatment of chrome parts, we recommend using Larrin.
Complete delivery:
- Stainless steel shower column
- Adjustable shower head
- Fasteners
| Water inlet | G 1/2" |
| Water pressure | 0,2 – 0,6 MPa |
| Water flow | aprox. 9 l/min |
| Height | 2,4 m |
| Dimensions | 2424 x 264 mm |
| Weight | 21 kg |
- Concreted base for fixing with chemical anchor.
- Pipe finished off with 1/2” bolting.
